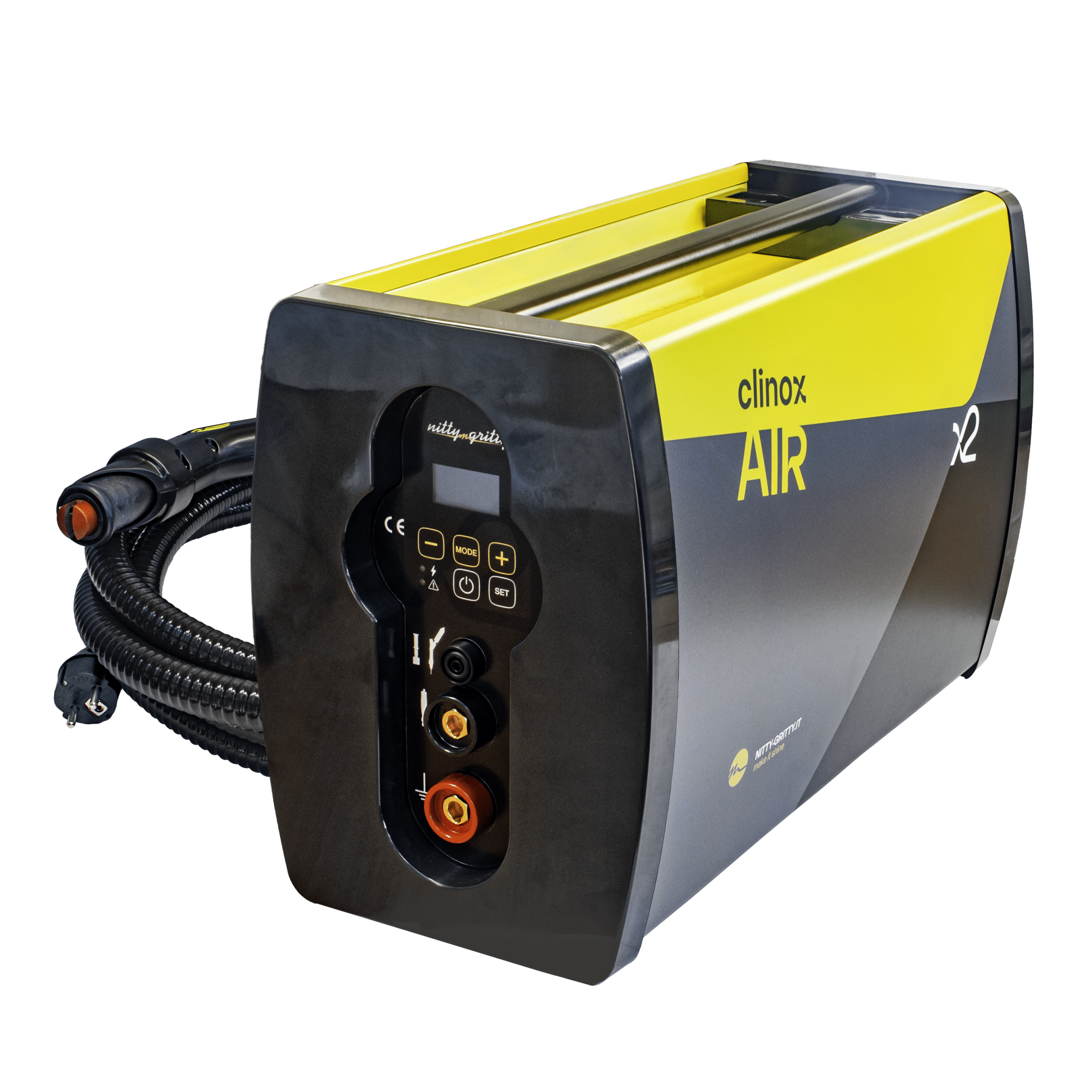

CLINOX AIR X2 s an electrochemical device for TIG weld cleaning, polishing, passivation and marking on stainless steel.
CLINOX AIR X2 deploys 900W and 30A thanks to an innovative inverter technology more efficient and powerful. The patented blowing torch andthe dynamic pump function ensure an intensive and continuous electrochemical process increasing the company productivity.

Included Torches:

• Automatic cleaning torch (4 m)
Main torch with integrated fluid supply and air assist, designed for intensive and continuous cleaning and polishing of stainless steel welds.

• Manual cleaning torch
Compact torch for manual use, ideal for small or hard-to-reach welds.

• D&W torch (Drop & Work)
Ergonomic torch with automatic electrolyte dosing, perfect for repetitive tasks with consistent quality.

• Marking torch
For electrochemical marking on stainless steel using stencils, suitable for logos, serial numbers, and CE markings.

Products

Article number
Description
Article number
336.AIRX223001
Description
Clinox air X2

Details

Mains Voltage
230 V - 50/60 Hz
Maximum primary power
1200 VA
Output current
0÷30 A
Output voltage
3÷30 V AC/DC
Output power
900 W
Voltage regulation
3÷30 V (step 1 V)
Current regulation - Low
15 A
Current regulation - High
30 A
Tank capacity
1,8 liter
Dispensing rate
1÷3,6 l/h
Pump regulation
Dynamic
Manual
Automatic: 8 levels
Weight
16,5 kg
Dimensions (L x B x H)
543 x 228 x 315 mm
Torches
Blowing torch - L. 4 m
Small manual torch
D&W torch (Drop & Work)
Marking torch
Functions
Cleaning
Polishing
Marking

Parts

Article number
Description
Included
Reorderable
Article number
337.CLX800124
Description
Automatic cleaning torch, 4 m
Included
1 pc
Reorderable
1 pc
Article number
337.CLX501035
Description
Complete torch holder
Included
1 pc
Reorderable
1 pc
Article number
337.CLX000170
Description
Ground cable with clamp, L: 3 m, Ø10 mm²
Included
1 pc
Reorderable
1 pc
Article number
337.CLXTIG000156
Description
Standard tungsten insert, 22 mm
Included
1 pc
Reorderable
1 pc
Article number
337.CLXTIG002565.10
Description
Contact pads, 24×45×4 mm
Included
2 pcs
Reorderable
10 pcs
Article number
337.CLXTIG002580.10
Description
PTFE ring, 23 × 19 × 10 mm
Included
1 pc
Reorderable
10 pcs
Article number
337.CLXTIG000756
Description
Graphite insert, L: 45 mm
Included
1 pc
Reorderable
1 pc
Article number
337.CLXTIG002541.05
Description
Large contact pad, 46×90×3.5 mm
Included
1 pc
Reorderable
5 pcs
Article number
337.CLX002886
Description
FKM O-ring, Ø36.8 × 29.74 mm
Included
1 pc
Reorderable
1 pc
Article number
337.CLXTIGB030
Description
Torch adapter PRO
Included
1 pc
Reorderable
1 pc
Article number
337.CLXTIGB029.5
Description
Clinox brush “L”, cylindrical sleeve,  Ø10 mm
Included
1 pc
Reorderable
5 pcs
Article number
337.CLXTIG002508.06
Description
Brill Bomar stainless steel cleaning fluid,  1 L
Included
1 pc
Reorderable
6 x 1 L
Article number
337.ESXFIT000001.06
Description
Inox Fit neutralizing solution, 500 ml
Included
1 pc
Reorderable
6 x 1 L
