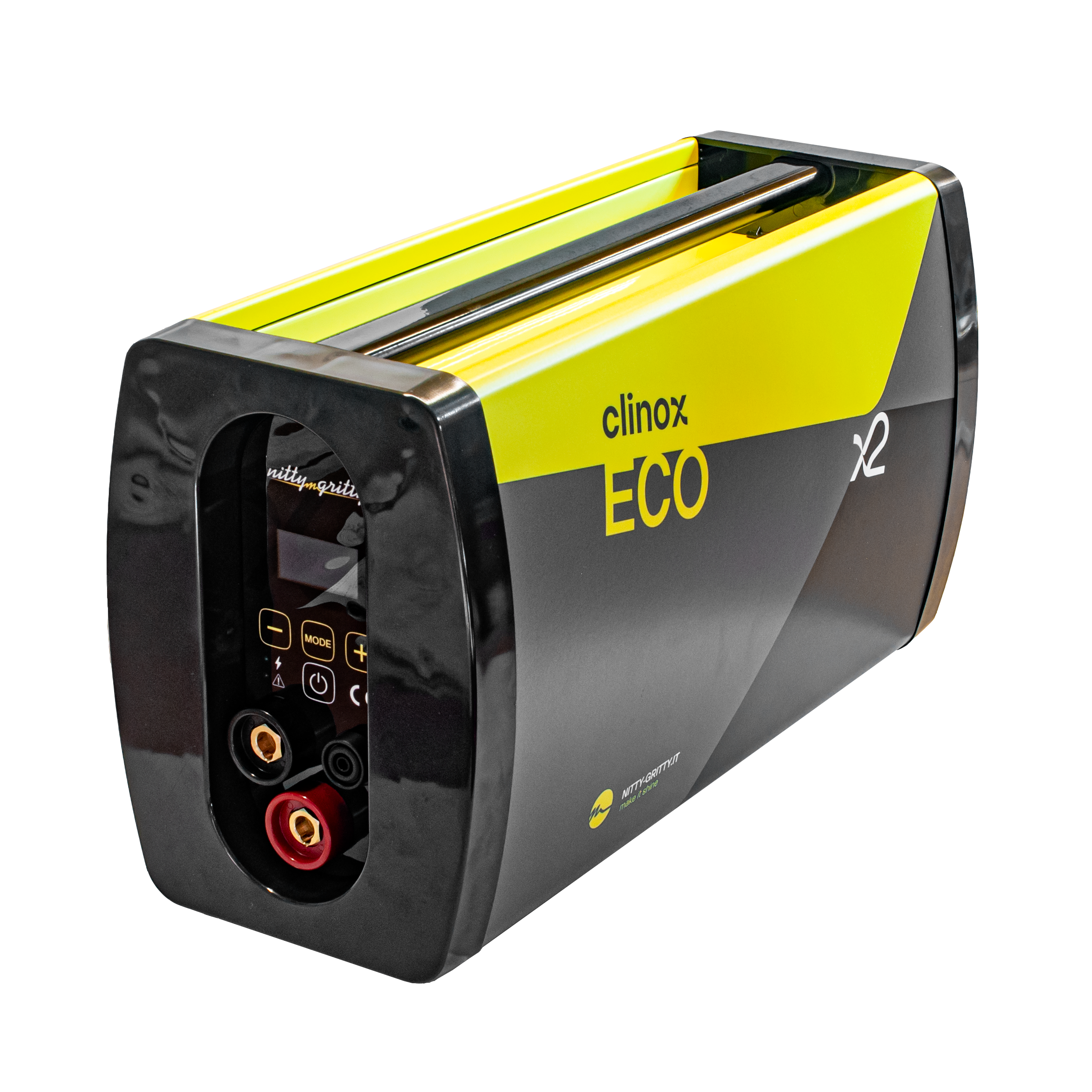

CLINOX ECO X2 is an electrochemical device for TIG weld cleaning, polishing, passivation and marking on stainless steel.
CLINOX ECO X2 deploys 900W and 30A thanks to an innovative inverter technology more efficient and powerful. Thanks to its ergonomic handling and lightness, the patented manual torch is suitable for quick working process and to reach less accessible points more easily.

Included Torches:

• Small manual torch (2 m)
Compact torch for manual use, ideal for small or hard-to-reach welds.

• D&W torch (Drop & Work)
Ergonomic torch with automatic electrolyte dosing, perfect for repetitive tasks with consistent quality.

• Marking torch
For electrochemical marking on stainless steel using stencils, suitable for logos, serial numbers, and CE markings.

Products

Article number
Description
Article number
336.ECOX223001
Description
Clinox eco X2

Details

Mains Voltage
230 V - 50/60 Hz
Maximum primary power
1200 VA
Output current
0÷30 A
Output voltage
3÷30 V AC/DC
Output power
900 W
Voltage regulation
3÷30 V (step 1 V)
Current regulation
30 A
Tank capacity
-
Dispensing rate
-
Pump regulation
-
-
-
Weight
6,8 kg
Dimensions (L x B x H)
410 x 170 x 238 mm
Torches
-
Small manual torch, L.2 m
D&W torch (Drop & Work)
Marking torch
Functions
Cleaning
Polishing
Marking

Parts

Article number
Description
Included
Reorderable
Article number
337.CLX002223
Description
Manual torch (with manual pumping system)
Included
1 pc
Reorderable
1 pc
Article number
337.CLX002212
Description
Manual torch holder
Included
1 pc
Reorderable
1 pc
Article number
337.CLX500629
Description
Extension for torch holder
Included
1 pc
Reorderable
1 pc
Article number
337.CLX004002
Description
Torch cable, L: 2 m, Ø1 mm²
Included
1 pc
Reorderable
1 pc
Article number
337.CLX000170
Description
Ground cable with clamp, L: 3 m, Ø10 mm²
Included
1 pc
Reorderable
1 pc
Article number
337.CLXTIGB026
Description
Torch brush adapter mod. ECO
Included
1 pc
Reorderable
1 pc
Article number
337.CLXTIGB028.5
Description
Clinox brush mod. 'M' with cylindrical sleeve Ø8 mm
Included
5 pcs
Reorderable
5 pcs
Article number
337.CLXTIG000960
Description
Standard graphite insert – 90°, L. 22 mm
Included
1 pc
Reorderable
1 pc
Article number
337.CLXTIG002565.10
Description
Fast bond pad 24×45×4 mm
Included
2 pcs
Reorderable
18 pcs
Article number
337.CLXTIG002580.10
Description
PTFE ring 23×19×10 mm
Included
1 pc
Reorderable
10 pcs
Article number
337.CLXTIG002518.100
Description
Brill Bomar cleaning & polishing solution – 100 ml
Included
1 pc
Reorderable
10 pcs
Article number
337.CLXTIG002520.100
Description
Tig Bomar cleaning solution – 100 ml
Included
1 pc
Reorderable
10 pcs
Article number
337.CLXTIG002516.20
Description
Neutral Bomar cleaning solution – 100 ml
Included
1 pc
Reorderable
10 pcs
Article number
337.ESXFIT000001.06
Description
Inox Fit, 500 ml (neutralizing solution)
Included
1 pc
Reorderable
6 × 500 ml
