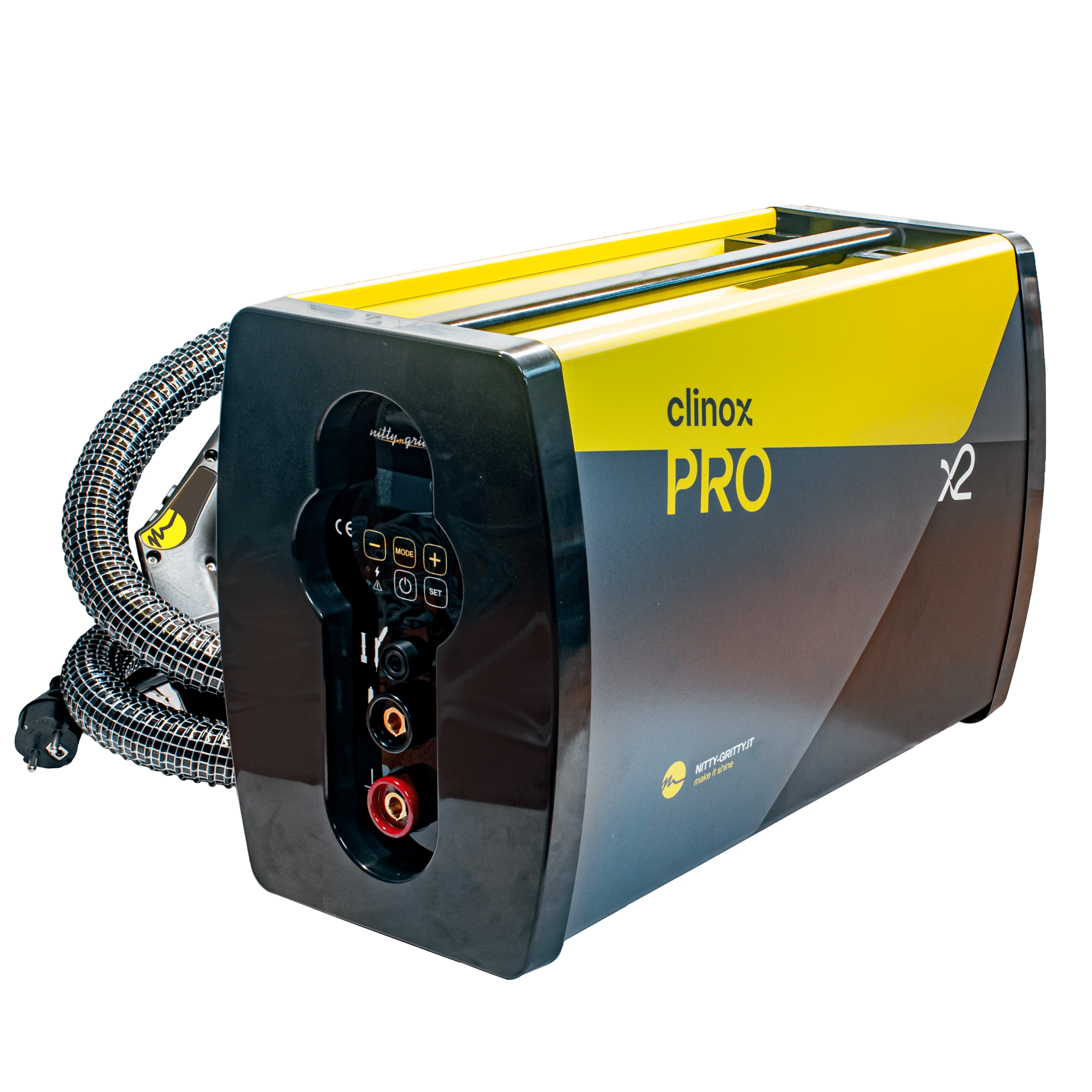

CLINOX PRO X2 is an electrochemical system for TIG weld cleaning, polishing, passivation and marking on stainless steel.
It delivers 900 W and 30 A using innovative inverter technology, making it more efficient and powerful. The patented suction torch and the dynamic pump regulation ensure an intensive and continuous electrochemical process, boosting overall productivity.

Included Torch:

• Suction torch – L: 3 m
Main torch with integrated suction and fluid control, ideal for intensive and continuous weld cleaning.

Optional Torches:

• Small manual torch

Compact torch for manual operations, ideal for small or hard-to-reach welds.

• D&W torch (Drop & Work)
Ergonomic torch with automatic electrolyte dosing, perfect for repetitive cleaning tasks.

• Marking torch
For electrochemical marking on stainless steel using stencils (e.g. logos, serial numbers, CE marking).

Products

Article number
Description
Article number
336.PROX223001
Description
Clinox Pro X2

Details

Mains Voltage
230 V - 50/60 Hz
Maximum primary power
1800 VA
Output current
0÷30 A
Output voltage
3÷30 V AC/DC
Output power
900 W
Voltage regulation
3÷30 V (step 1 V)
Current regulation - Low
15 A
Current regulation - High
30 A
Tank capacity
1,8 liter
Dispensing rate
1÷3,6 l/h
Pump regulation
Dynamic
Manual
Automatic: 8 levels
Weight
18 kg
Dimensions (L x B x H)
543 x 228 x 315 mm
Torches
Suction torch - L. 3 m
Small manual torch
D&W torch (Drop & Work)
Marking torch
Functions
Cleaning
Polishing
Marking

Parts

Article number
Description
Included
Reorderable
Article number
337.CLX800346
Description
Suction torch, L: 3 m
Included
1 pc
Reorderable
1 pc
Article number
337.CLX501035
Description
Complete torch holder
Included
1 pc
Reorderable
1 pc
Article number
337.CLX000170
Description
Ground cable with clamp, L: 3 m, Ø10 mm²
Included
1 pc
Reorderable
1 pc
Article number
337.CLXTIG000156
Description
Standard tungsten insert, L: 22 mm
Included
1 pc
Reorderable
1 pc
Article number
337.CLXTIG002565.10
Description
Fast bond pad, 24 × 45 × 4 mm
Included
2 pcs
Reorderable
10 pcs
Article number
337.CLXTIG002580.10
Description
PTFE ring, 23 × 19 × 10 mm
Included
1 pc
Reorderable
10 pcs
Article number
337.CLXTIG000756
Description
Graphite insert, L: 45 mm
Included
1 pc
Reorderable
1 pc
Article number
337.CLXTIG002541.05
Description
Big bond pad, 46 × 90 × 3.5 mm
Included
1 pc
Reorderable
5 pcs
Article number
337.CLX002886
Description
FKM O-ring, Ø36.8 × 29.74 mm
Included
1 pc
Reorderable
1 pc
Article number
337.CLXTIGB030
Description
Torch brush adapter mod. PRO
Included
1 pc
Reorderable
1 pc
Article number
337.CLXTIGB029.5
Description
Clinox brush mod: “L” with cylindircal sleeve D. 10 mm
Included
1 pc
Reorderable
5 pcs
Article number
337.CLXTIG002508.06
Description
Brill Bomar solution, 1 L (cleaning and polishing solution)
Included
1 pc
Reorderable
6 x 1 L
Article number
337.ESXFIT000001.06
Description
Inox Fit, 500 ml (neutralizing solution)
Included
1 pc
Reorderable
6 x 1 L
