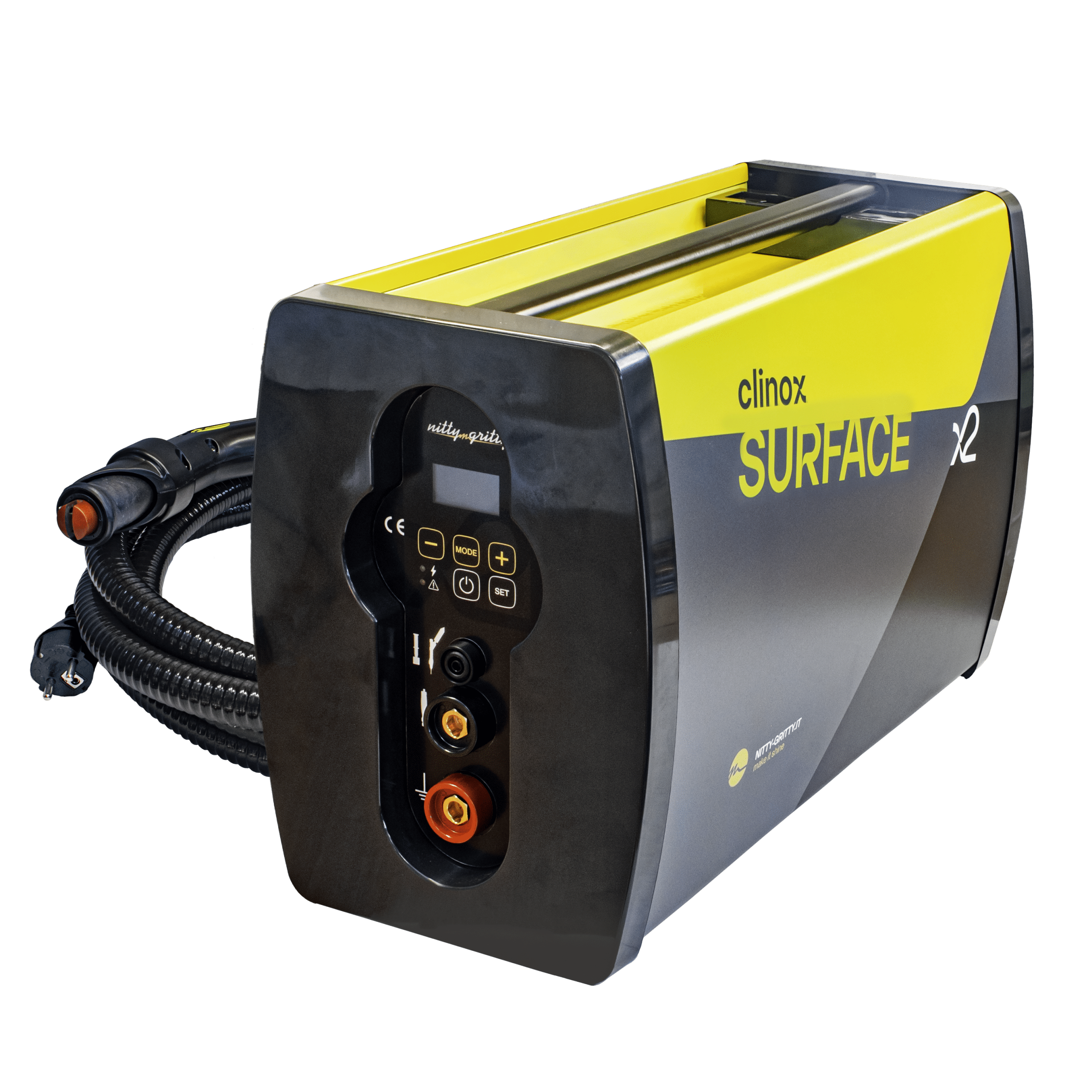

CLINOX SURFACE X2 is an electrochemical device design to clean, polish, passivate and mark the stainless
steel surfaces and welds. CLINOX SURFACE X2 deploys 2400W and 100A thanks to an innovative inverter technology more efficient
and powerful. The patented blowing torch and the dynamic pump function ensure an intensive and
continuous electrochemical process increasing the company productivity.



Products

Article number
Description
Article number
336.SURFACEX223001
Description
Clinox surface X2

Details

Mains Voltage
230 V - 50/60 Hz
Maximum primary power
2400 VA
Output current
0÷100 A
Output voltage
3÷30 V AC/DC
Output power
2400 W
Voltage regulation
3÷30 V (step 1 V)
Current regulation, Low
30 A
Current regulation, Mid
50 A
Current regulation, High
100 A
Tank capacity
1,8 liter
Dispensing rate
1÷3,6 l/h
Pump regulation
Dynamic
Manual
Automatic: 8 levels
Weight
18,5 kg
Dimensions (L x B x H)
543 x 228 x 315 mm
Torches
Blowing torch - L. 6 m
Functions
Cleaning
Polishing
Marking

Parts

Article number
Description
Included
Reorderable
Article number
337.CLX800165
Description
Automatic cleaning torch, 6 m
Included
1 pc
Reorderable
1 pc
Article number
337.CLX800148
Description
Complete torch holder
Included
1 pc
Reorderable
1 pc
Article number
337.CLX004090
Description
Ground cable with clamp, L: 3 m, Ø16 mm²
Included
1 pc
Reorderable
1 pc
Article number
337.CLXTIG000156
Description
Standard tungsten insert, 22 mm
Included
2 pcs
Reorderable
1 pc
Article number
337.CLXTIG002565.10
Description
Contact pads, 24×45×4 mm
Included
1 pc
Reorderable
10 pcs
Article number
337.CLXTIG002580.10
Description
PTFE ring, 23 × 19 × 10 mm
Included
1 pc
Reorderable
10 pcs
Article number
337.CLXTIG000756
Description
Graphite insert, L: 45 mm
Included
1 pc
Reorderable
1 pc
Article number
337.CLXTIG002541.05
Description
Large contact pad, 46×90×3.5
Included
1 pc
Reorderable
5 pcs
Article number
337.CLX002886
Description
FKM O-ring, Ø36.8 × 29.74 mm
Included
1 pc
Reorderable
1 pc
Article number
337.CLXTIGB030
Description
Torch adapter PRO
Included
1 pc
Reorderable
1 pc
Article number
337.CLXTIGB045
Description
Clinox brush “XL”
Included
1 pc
Reorderable
1 pc
Article number
337.CLXTIGB046
Description
PTFE sleeve (for Clinox brush XL)
Included
1 pc
Reorderable
1 pc
Article number
337.CLXTIG002508.06
Description
Brill Bomar solution, 1 L (cleaning and polishing)
Included
1 pc
Reorderable
6 x 1 L
Article number
337.ESXFIT000001.06
Description
Inox Fit, 500 ml (neutralizing solution)
Included
1 pc
Reorderable
6 x 1 L
