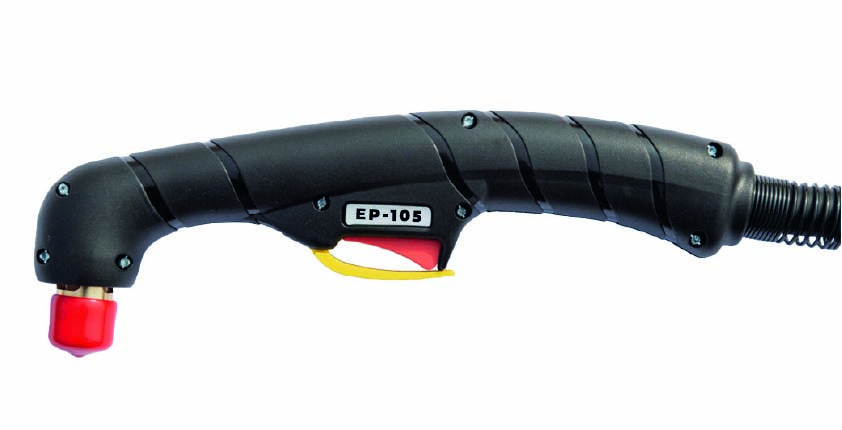

Helvi hand cutting torch EP-105, 75°
Need help with this product?
You can call or mail us.
We will gladly help you!
,
Details
Cutting current
20-105 A
Duty cycle 60%
105 A
Gas supply
Air, Nitrogen
Gas supply pressure Cutting
3.5 – 4.5 Bar (50 – 65 Psi)
Gas supply pressure Gouging
5.0-5.5 Bar (72 – 80 Psi)
Ignition
Without High frequency
Products
Article number
Description
Cable
Article number 315.23010162
Description Helvi Plasma torch EP-105, H.Fit 75°
Cable 6 metres

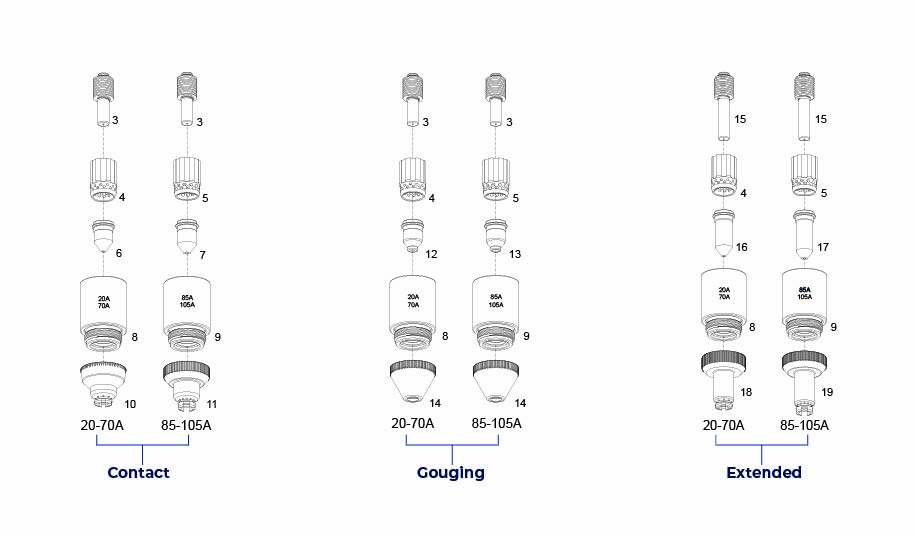

Parts
Article number
Description
Drawing number
Article number
375.05800E
Description
hand torch head 75°
Drawing number
1
Article number
375.07300.60
Description
O-ring
Drawing number
n/s
Article number
375.52574
Description
Electrode, 20-105 A
Drawing number
3
Article number
375.60041
Description
Swirl ring, 20-70 A maximum life
Drawing number
4
Article number
375.60024
Description
Swirl ring, 85-105 A maximum life
Drawing number
5
Article number
375.51206
Description
Tip, contact cutting, 45 A
Drawing number
6
Article number
375.51206.11
Description
Tip, contact cutting, 70 A
Drawing number
Article number
375.51223.13
Description
Tip, contact cutting, 85 A
Drawing number
7
Article number
375.51223.15
Description
Tip, contact cutting, 105 A
Drawing number
Article number
375.60305
Description
Shield cup body, 20-70 A maximum life
Drawing number
8
Article number
375.60329
Description
Shield cup body, 85-105 A maximum life
Drawing number
9
Article number
375.51923
Description
Shield cap, 20-70 A Hand
Drawing number
10
Article number
375.51941
Description
Shield cap, 85-105 A Hand
Drawing number
11
Article number
375.51206G
Description
Tip, gouging, 45 A
Drawing number
12
Article number
375. 51206G.10
Description
Tip, gouging, 70 A
Drawing number
Article number
375.52574L
Description
Extended electrode, 20-105 A
Drawing number
15
Article number
375.51206L
Description
Extended tip, 45 A
Drawing number
16
Article number
375.51206L.11
Description
Extended tip, 70 A
Drawing number
Article number
375.51223L.13
Description
Extended tip, 85 A
Drawing number
17
Article number
375. 51223L.15
Description
Extended tip, 105 A
Drawing number
Article number
375.51923L
Description
Extended shield 20-70 A
Drawing number
18
Article number
375.51941L
Description
Extended shield 85-105 A
Drawing number
19
Article number
375.51865
Description
Circle cutting attachment
Drawing number
n/s
Article number
375.51880
Description
Bevel tool
Drawing number
20
