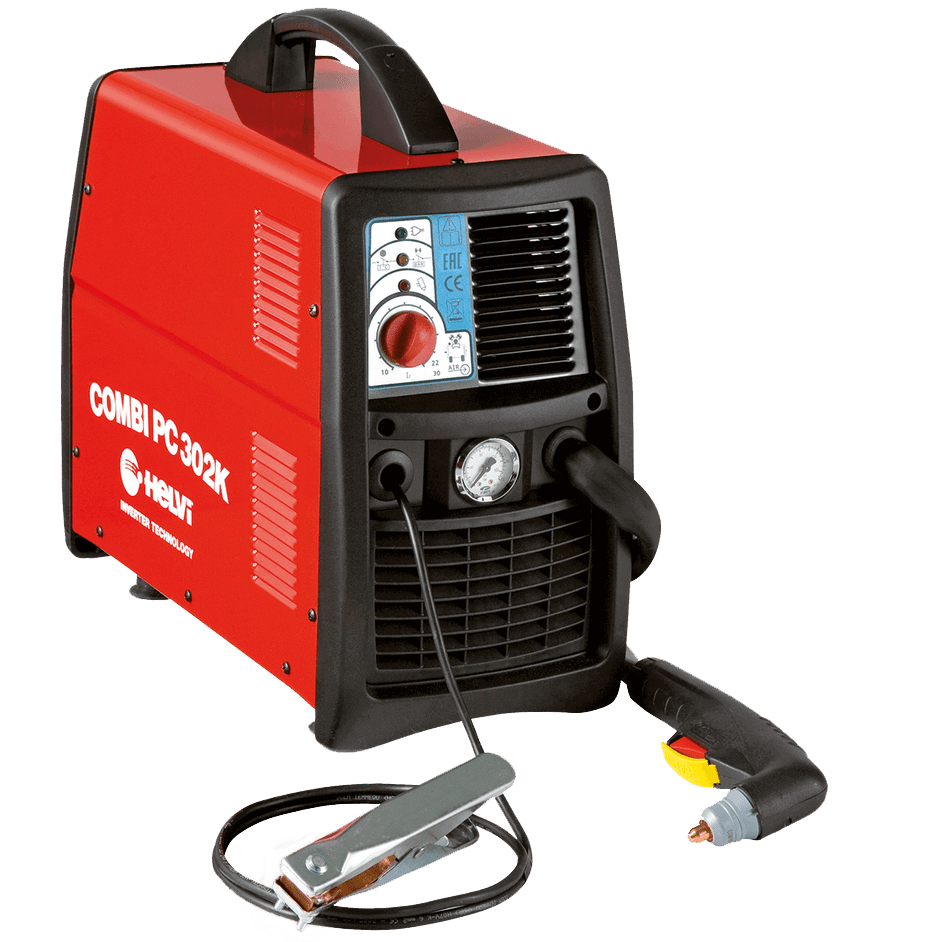

Helvi Plasma Cutter PC COMBI 302K
Need help with this product?
You can call or mail us.
We will gladly help you!
Plasma cutting systems based on inverter technology with internal compressor. Portable, single-phase, microprocessor-controlled and equipped with pneumatic torch without HF. Easily used even at some distance from a compressed air source, they produce quality cutting on all conductor materials such as steel, stainless steel, aluminium, copper, brass, etc. Suitable for lightweight and heavy bodywork, maintenance of large installations, air conditioning systems, shipyards and metalwork in general.
Helvi Plasma Cutter PC COMBI 302K consists of:
- PC COMBI 302K Power source
- Ground cable, Fixed, 6 mm², 4,o m
- Plasma torch PT40C, Fixed, 4,0 m
- Plasma consumable, Contact Tip, Ø 0,8 mm, 20-30 A
- Plasma consumable, Contact Tip · Ø 0,65 mm, 10-20 A
- Plasma consumable, Electrode
- Plasma consumable, Nozzle, 6 holes (for external compressor)
Details
Welding process
Plasma
Supply voltage
(1ph) 230V ± 10% • 50/60Hz
Cutting thickness
8 - 10 mm
Duty cycle 40° @ 100%
12 Amp.
Duty cycle 40° @ 40%
25 Amp.
Cooling
Air cooled
Protection class
IP22S
Weight
20,4 / 19,0 kg
Dimensions
200x435x395 mm
Producten
Artikelnummer
Omschrijving
Artikelnummer
315.99830015
Omschrijving
Helvi Plasma Combi 302K , 230V Compressor+ Torch PT40
