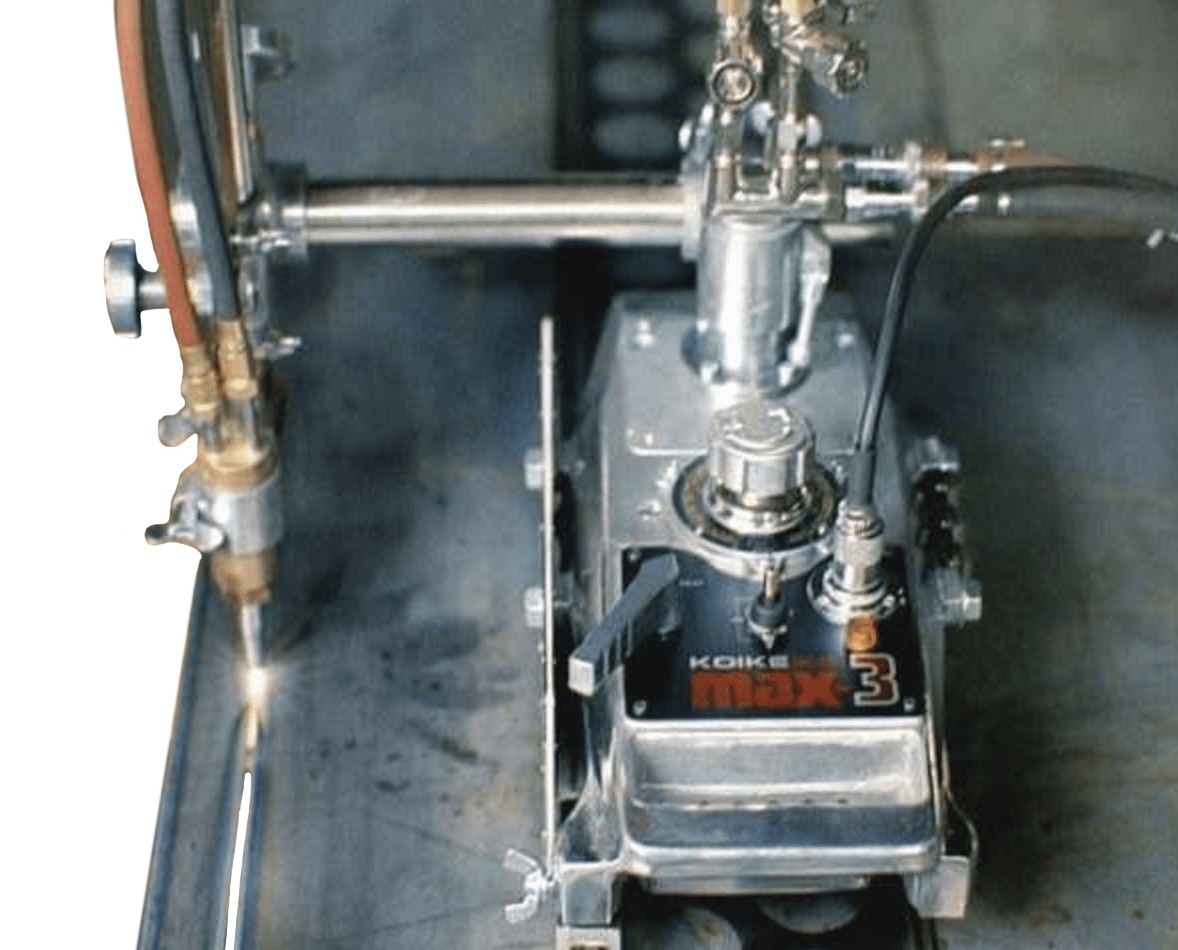

The IK 12 Max 3 is the premium product of our range! In addition to autogenous cutting, this motorised portable machine can also be used for plasma cutting and automated welding with top quality. The three main parts (machine housing, burner set and rail) as well as the accessories are named individually. The machine can be assembled completely according to customer requirements.
Products
Article number
Description
Article number
304.90029
Description
IK-12 Max 3 standard machine housing 42V
Article number
304.90028
Description
IK-12 Max 3 standard machine housing 110V
Article number
304.90027
Description
IK-12 Max 3 standard machine housing 220V
Article number
304.90056
Description
IK-12 Max 3 S machine housing 42V
Article number
304.90057
Description
IK-12 Max 3 S machine housing 110V
Article number
304.90026
Description
IK-12 Max 3 S machine housing 220V
Article number
304.90033
Description
IK-12 Max 3 ML machine housing 220V
Article number
304.90030
Description
IK-12 Max 3 ML machine housing 42V
Details
IK-12 Max 3 standard
Max. cutting thickness
The torch set is a deciding factor in this
Cutting speed
60Hz = 80 - 800 mm/min, 60Hz = 100 - 1,000 mm/min
Supply voltage
AC 220V / AC 110V / AC 42V (+/- 10%)
Dimensions
430 x 220 x 215 mm (housing)
Weight
10 kg (housing)
IK-12 Max 3-S
Max. cutting thickness
The torch set is a deciding factor in this
Cutting speed
50Hz: 80 - 800 mm / min, 240 - 2,400 mm / min - 60Hz: 100 - 1,000 mm/min, 300 - 3,000 mm/min
Supply voltage
AC 220V / AC 110V / AC 42V (+/- 10%)
Dimensions
430 x 220 x 215 mm (housing)
Weight
11 kg (housing)
IK-12 Max 3-ML
Max. cutting thickness
50Hz: 40 - 400 mm / min - 60Hz: 50 - 500 mm/min
Cutting speed
The torch set is a deciding factor in this
Supply voltage
AC 220V / AC 110V / AC 42V (+/- 10%)
Dimensions
430 x 220 x 215 mm (housing)
Weight
11 kg (housing)
