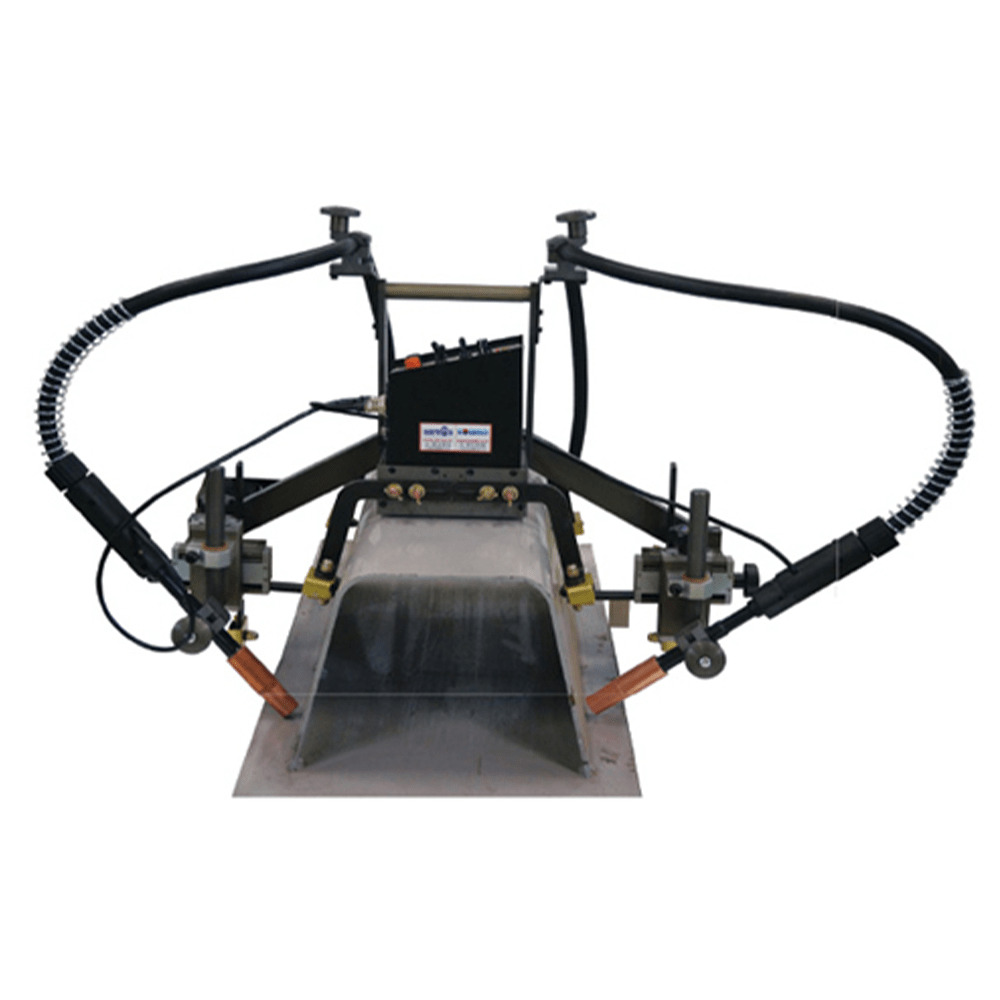

Koweld CS-81 U-Rib fillet welder

Dual-side fillet welding for U-Rib structures
It is a dual side fillet welder of U-Rib.

Adjustable welding configuration
The single or dual side welding is selectable, and the arm height of the welder is adjustable according to the size of U-Rib.

Consistent weld quality with tension slide
The additionally equipped tension slide makes the welding tracing constant and the high welding quality.

Guide rollers ensure stable arc height
While the welder travels on the U-Rib, the guide rollers of the tension slides move on the side plates and it makes the constant arc height in welding.

Constant speed
It drives at a constant speed with the minimized gear backlash.
Thus the high welding quality
and the long life span of the welder is acquired.

Details

General
Input power
Bosch battery 18V 4.0 Ah
Dimensions
330 mm x 775 mm x 661 mm
Weight
14.5 kg
Body
Driving method
4 wheels driven
Traveling speed
0~98 cm/min
Traveling motor
DC 24V, 12W, 5000RPM BLDC motor
Traction power
20 kg
Magnetic power
-
Torch
Up/Down angle
45˚ ± 10˚
Front/Back distance
0~70 mm
Up/Down distance
0~70 mm
Running angle
± 5˚

Products

Article number
Description
Article number
310.CS-81
Description
Koweld CS-81 U-Rib fillet welding machine
