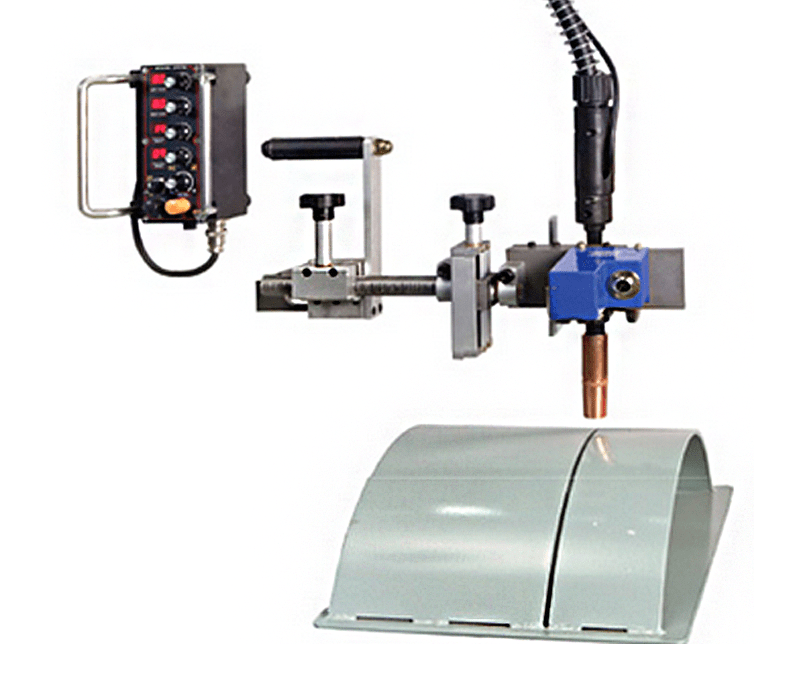

Koweld CS-S1 Linear weaving welder

Circumferential butt & fillet welding
It is a butt & fillet welder for circumference, and the column & boom, and the rotator are needed additionally.

Precise linear movement
It makes linear movement, and the leg length of high quality as much as you want can be acquired.

Constant speed
It drives at a constant speed with the minimized gear backlash.
Thus the high welding quality and the long life span of the welder is acquired.

Details

General
Input power
Bosch battery 18V 4.0 Ah
Dimension
420 mm x 241 mm x 232 mm
Weight
3.8 kg
Torch
Left/right distance
0~120 mm
Up/down distance
0~70 mm
Running angle
± 5°
Weaver
Motor
DC24V, 12W, 5000 RPM BLDC motor
Readucer
1000:1
Weaving width
0~50 mm/± 5%
Weaving speed
26 times/min
Left/right stop time
0.0~9.9 (sec)
Center shift
50.8 mm

Products

Article number
Description
Article number
310.CS-S1
Description
Koweld CS-S1 Linear weaving welder
