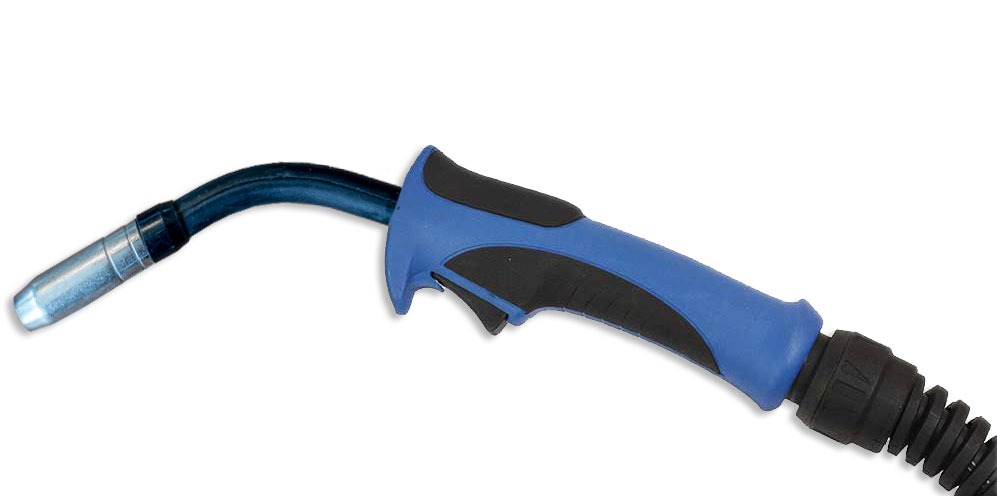

Lascentrum MIG / MAG welding torch LC150
Need help with this product?
You can call or mail us.
We will gladly help you!
Compact gas cooled welding with with euro connector, strain relief and resilient contact pins. The ergonomic handle features a ball joint, giving the welder more freedom of movement. The wearing parts are easily replaceable. Suitable for all welding wires with diameters of Ø0.8 – Ø1.2 mm
Available lengths: 3, 4 and 5 metres
Gooseneck type: 45° (other versions available on request)
Duty cycle: 60% at 180 A (CO₂ gas)
60% at 150 A (mixed gases Ar/CO₂)
Products
Article number
Description
Length
Article number 330.LC150/3M
Description Lascentrum MIG / MAG LC150 torch
Length 3 metres
Article number 330.LC150/4M
Description Lascentrum MIG /MAG LC150 torch
Length 4 metres
Article number 330.LC150/5M
Description Lascentrum MIG / MAG LC150 torch
Length 5 metres

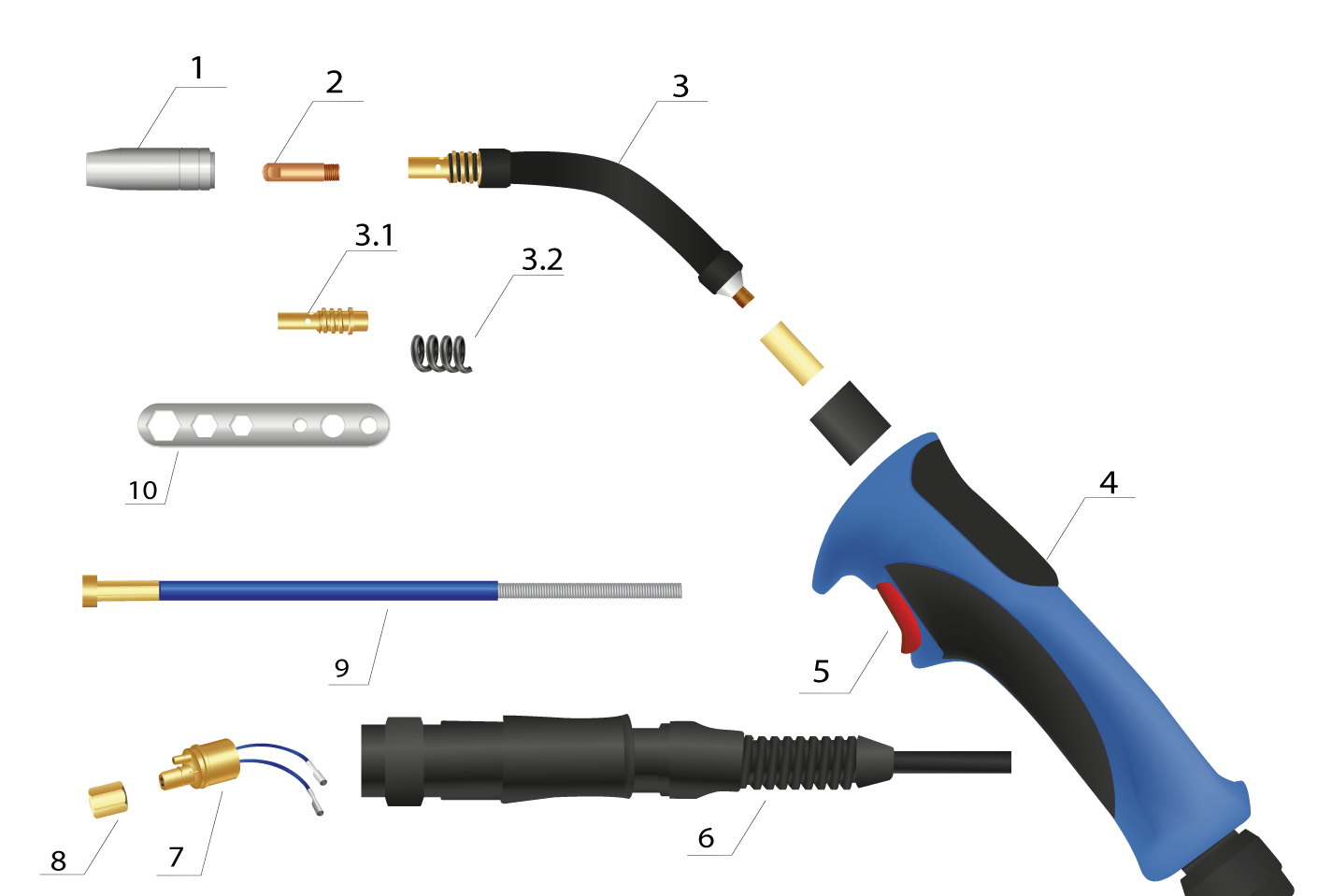

Torch components
Article number
Description
Number on drawing
Article number 331.345P013002
Description Gas nozzle 9.5 mm
Number on drawing 1
Article number 331.236303
Description Gas nozzle 12 mm
Number on drawing 1
Article number 331.345P011402
Description Gas nozzle 16 mm
Number on drawing 1
Article number 331.235602
Description Contact tip M6 x 25 mm – 0.8 mm
Number on drawing 2
Article number 331.235604
Description Contact tip M6 x 25 mm – 1.0 mm
Number on drawing 2
Article number 331.235605
Description Contact tip M6 x 25 mm – 1.2 mm
Number on drawing 2
Article number 331.102P001002
Description Goose neck
Number on drawing 3
Article number 331.102P002037
Description Contact tip holder
Number on drawing 3.1
Article number 331.102P002011
Description Spring clip
Number on drawing 3.2
Article number 331.380P220101
Description Blue handle
Number on drawing 4
Article number 331.385P021016
Description Switch
Number on drawing 5
Article number 331.71026102
Description Steel spring gas cooled
Number on drawing 6
Article number 331.701P001015
Description Mig connection gas cooled
Number on drawing 7
Article number 331.701P002005
Description Nut
Number on drawing 8
Article number 331.324P154534
Description Liner 0.6 - 0.9 mm, 3 m (blue)
Number on drawing 9
Article number 331.324P154544
Description Liner 0.6-0.9 mm, 4 m (blue)
Number on drawing 9
Article number 331.391P000001
Description Mig/Mag Multi tool, M5 to M8
Number on drawing 10
