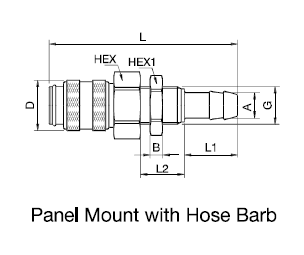

21KB Serie quick coupling bulkhead feed + tulle
Max. working pressure: 35 bar
Working temperature: -20°C→+100°C (NBR)
Products
Article number
Connection A - G
HEX-HEX1 - L - L1 - L2 - D - B
Material
Article number
451.21KBTS04MPX
Connection A - G
4 mm - M 10 x 1
HEX-HEX1 - L - L1 - L2 - D - B
14 - 14 - 60 - 17 - 14 - 16 - 4 mm
Material
Brass
Article number
451.21KBTS04MPN
Connection A - G
4 mm - M 10 x 1
HEX-HEX1 - L - L1 - L2 - D - B
14 - 14 - 60 - 17 - 14 - 16 - 4 mm
Material
Brass nickel plated
Article number
451.21KBTS05MPX
Connection A - G
5 mm - M 12 x 1
HEX-HEX1 - L - L1 - L2 - D - B
17 - 17 - 60 - 17 - 14 - 16 - 4 mm
Material
Brass
Article number
451.21KBTS05MPN
Connection A - G
5 mm - M 12 x 1
HEX-HEX1 - L - L1 - L2 - D - B
17 - 17 - 60 - 17 - 14 - 16 - 4 mm
Material
Brass nickel plated
Article number
451.21KBTS06MPX
Connection A - G
6 mm - M 12 x 1
HEX-HEX1 - L - L1 - L2 - D - B
17 - 17 - 60 - 17 - 14 - 16 - 4 mm
Material
Brass
Article number
451.21KBTS06MPX
Connection A - G
6 mm - M 12 x 1
HEX-HEX1 - L - L1 - L2 - D - B
17 - 17 - 60 - 17 - 14 - 16 - 4 mm
Material
Brass nickel plated
Article number
451.21KBTS08MPX
Connection A - G
8 mm - M 12 x 1
HEX-HEX1 - L - L1 - L2 - D - B
17 - 17 - 60 - 17 - 14 - 16 - 4 mm
Material
Brass
Article number
451.21KBTS08MPN
Connection A - G
8 mm - M 12 x 1
HEX-HEX1 - L - L1 - L2 - D - B
17 - 17 - 60 - 17 - 14 - 16 - 4 mm
Material
Brass nickel plated
Article number
451.21KBTS09MPX
Connection A - G
9 mm - M 12 x 1
HEX-HEX1 - L - L1 - L2 - D - B
17 - 19 - 60 - 17 - 14 - 16 - 4 mm
Material
Brass
Article number
451.21KBTS09MPN
Connection A - G
9 mm - M 12 x 1
HEX-HEX1 - L - L1 - L2 - D - B
17 - 19 - 60 - 17 - 14 - 16 - 4 mm
Material
Brass nickel plated
