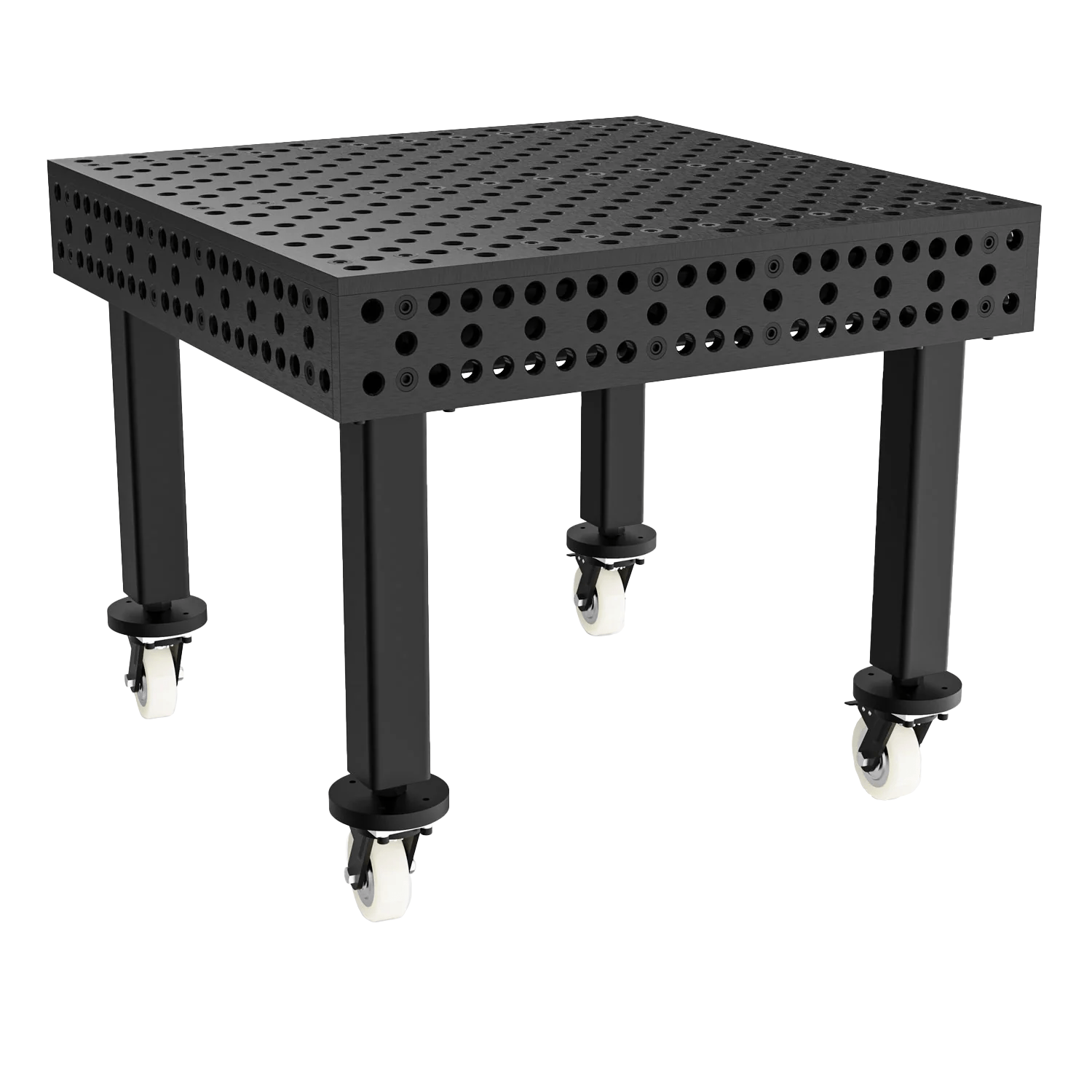

Strong Hand Alpha 28 1.2 x 1.2 m Tabletop fixed lenght legs caster and locking brake
Need help with this product?
You can call or mail us.
We will gladly help you!
Strongest and Flattest Welding Tables: Discover the Strong Hand Alpha Series
The Strong Hand Alpha Series is unmatched in the industry. This table system features patented, reversible, and replaceable top and side plates. Available in both metric and imperial spacing—with hole diameters of 28 mm and 16 mm respectively—the Alpha tables offer unparalleled versatility.
The plates on the table can be repositioned or removed depending on the application. A patented locating system ensures that the spacing between holes remains within tolerance, eliminating the need for recalibration.
BuildPro Engineers developed the Alpha 28 line in response to customer demand for an affordable yet robust welding and work table with metric specifications. The five-sided Alpha 28 table is the ideal solution for precise vertical and horizontal fixturing, expanding your welding and fabrication capabilities. Each table plate is made of low-alloy steel strong enough for tooling industry applications. After surface grinding and machining, each plate is further enhanced through a QPQ nitriding process, increasing hardness, corrosion resistance, and weld-spatter resistance.
- Enjoy double the durability! When signs of wear appear, simply flip the Alpha 28 plates to reveal a like-new work surface.
- Each heavy-duty leg of the Alpha 28 table can support up to 2,000 kg, letting you tackle even the heaviest projects with confidence.
- Every plate undergoes a QPQ nitriding process to boost hardness and resist corrosion and weld spatter.
System HoleHole diameter: 28 +0.20/-0 mm
Hole spacing: 100 ±0.05 mm
Large top chamfer for easy insertion.
Bottom chamfer improves bolt clamping
Material ThicknessPlate thickness: 25 ±0.06 mm
Table surface finish: Nitrided (heat-treated)
Friction coefficient: 0.37
Table SurfacFlatness: ±0.125 mm per 600 x 600 mm
Material: P20
Hardness: 58–62 HRC
Hole spacing: 100 mm with an additional 100 mm diagonal grid, offset by 50 mm on both X and Y
Self-Locating Plate SystemPositioning features in the frame and plate align with our patented supports for automatic self-alignment
Side PanelMaterial: Q345B
Hardness: 50–55 HRC
Side height: 200 mm
Side Plate Mounting DetailSide plates also use self-locating support brackets.
