Welding manipulators – WP
Need help with this product?
You can call or mail us.
We will gladly help you!
Products
Article number
Loading capacity
Max. distance centre of gravity (mm)
Max. eccentricity (mm)
Tilt angle (°)
Table diameter
Article number

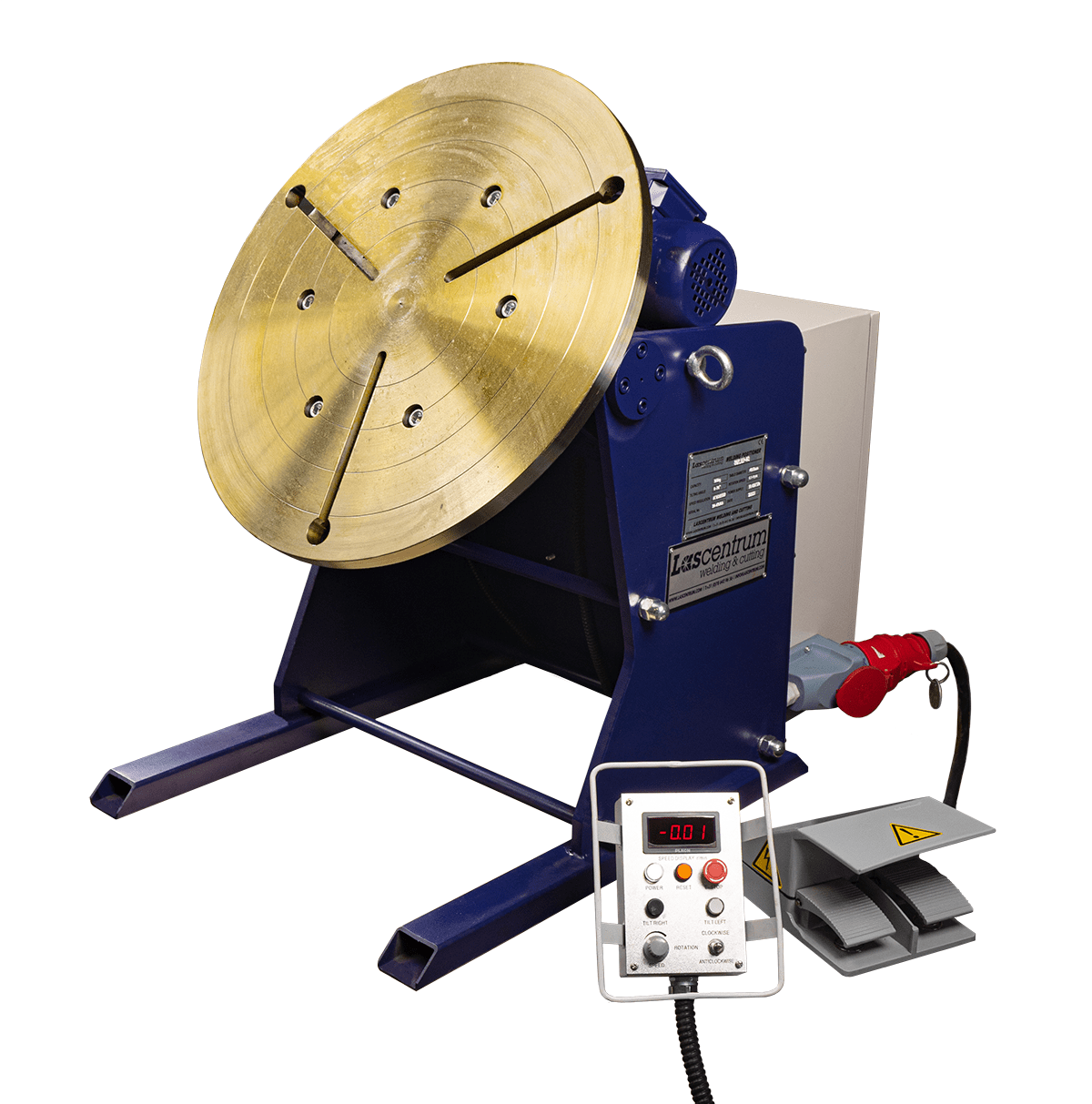

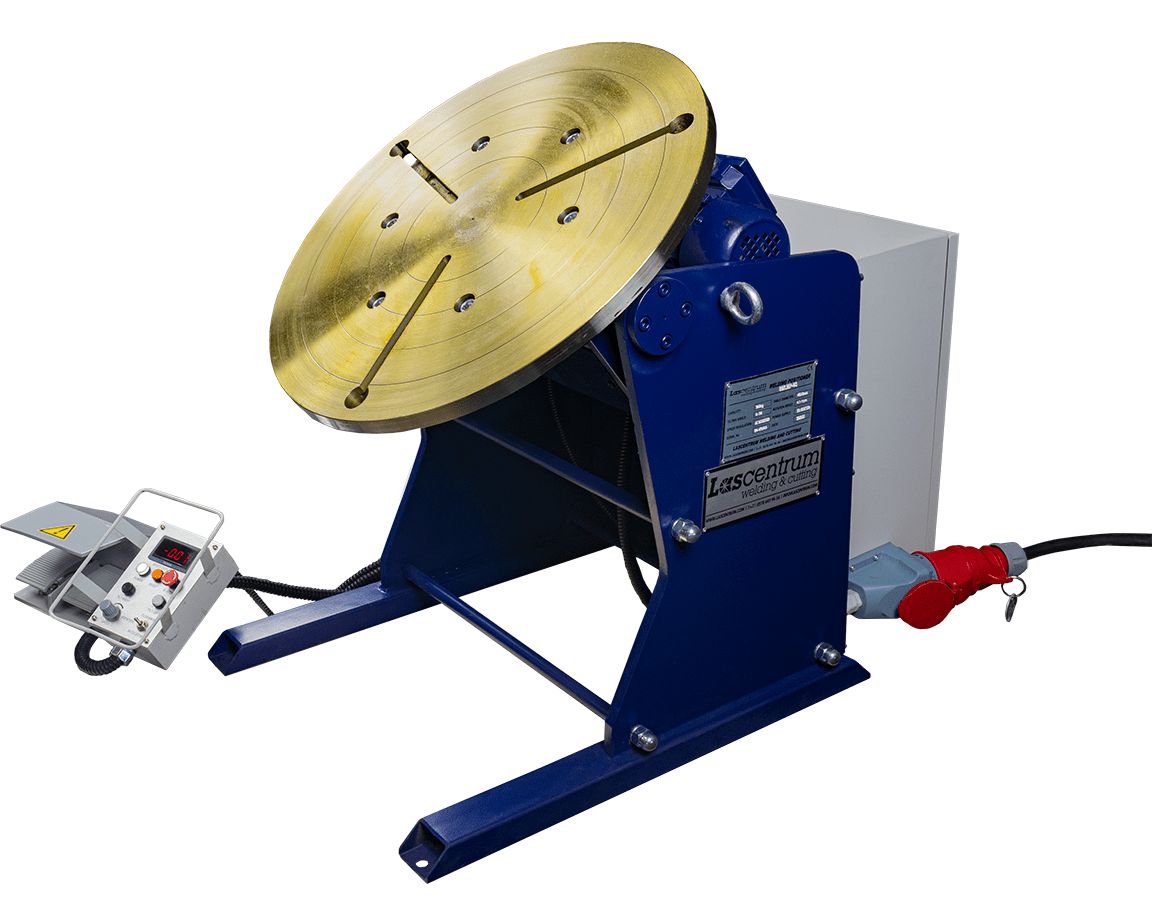

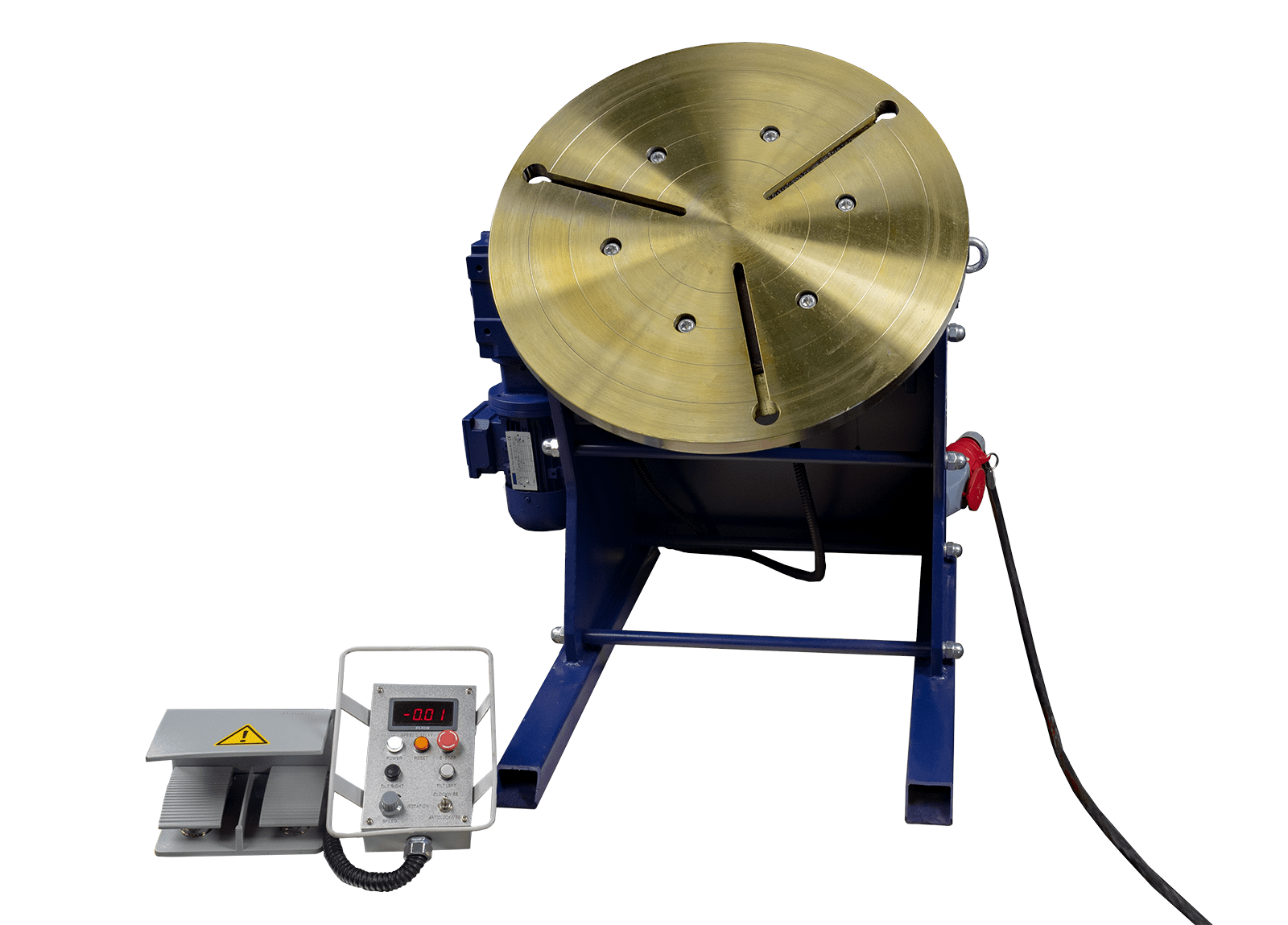

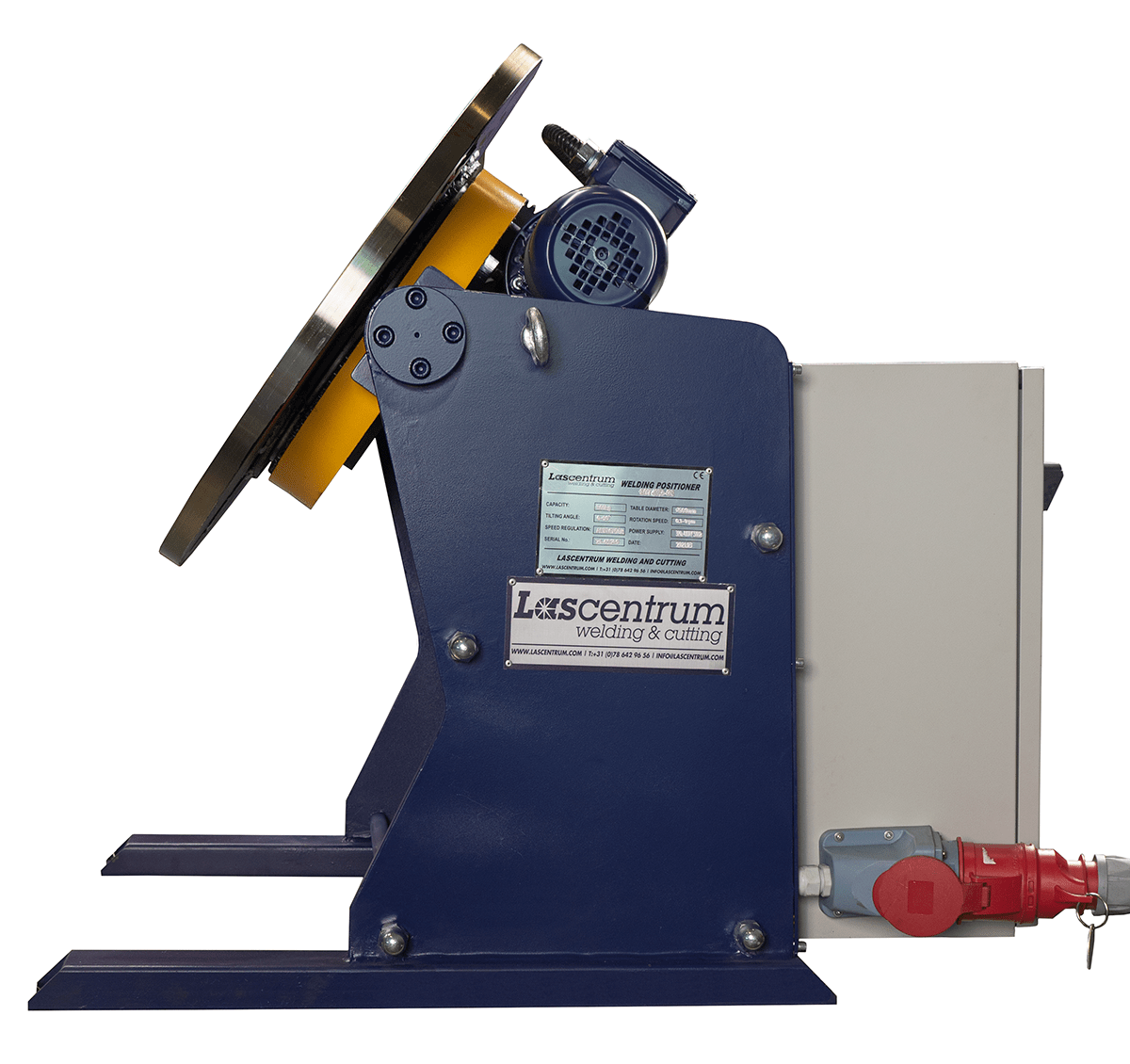

292.WP-03
Loading capacity
300 kg
Max. distance centre of gravity (mm)
200 mm
Max. eccentricity (mm)
150 mm
Tilt angle (°)
0º - 90º
Table diameter
600 mm
Article number
292.WP-06
Loading capacity
600 kg
Max. distance centre of gravity (mm)
200 mm
Max. eccentricity (mm)
150 mm
Tilt angle (°)
0º - 90º
Table diameter
1,000 mm
Article number
292.WP-12
Loading capacity
1,200 kg
Max. distance centre of gravity (mm)
250 mm
Max. eccentricity (mm)
200 mm
Tilt angle (°)
0º - 90º
Table diameter
1,200 mm
Article number
292.WP-30
Loading capacity
3,000 kg
Max. distance centre of gravity (mm)
300 mm
Max. eccentricity (mm)
200 mm
Tilt angle (°)
0º - 90º
Table diameter
1300 mm
Article number
292.WP-50
Loading capacity
5,000 kg
Max. distance centre of gravity (mm)
300 mm
Max. eccentricity (mm)
200 mm
Tilt angle (°)
0º - 135º
Table diameter
1,400 mm
Article number
292.WP-100
Loading capacity
10,000 kg
Max. distance centre of gravity (mm)
300 mm
Max. eccentricity (mm)
200 mm
Tilt angle (°)
0º - 135º
Table diameter
1,500 mm
Article number
292.WP-150
Loading capacity
15,000 kg
Max. distance centre of gravity (mm)
400 mm
Max. eccentricity (mm)
200 mm
Tilt angle (°)
0º - 135º
Table diameter
2,000 mm
Article number
292.WP-200
Loading capacity
20,000 kg
Max. distance centre of gravity (mm)
600 mm
Max. eccentricity (mm)
200 mm
Tilt angle (°)
-45º - 90º
Table diameter
3,000 mm
