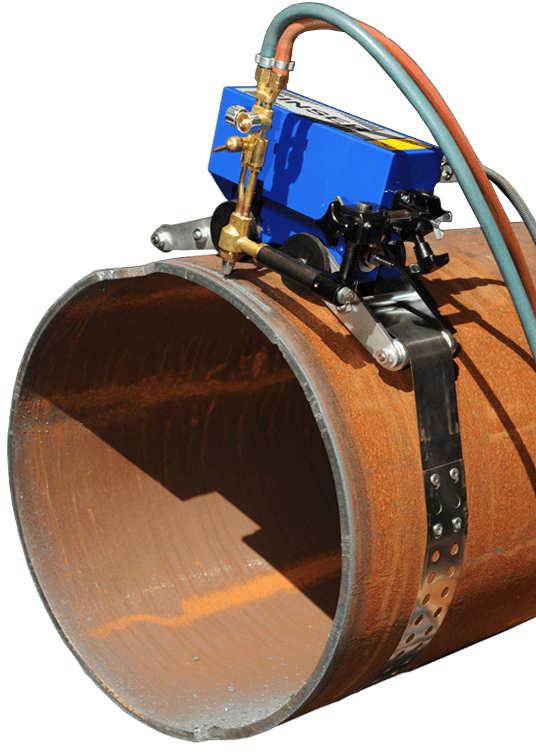

The pipe cutting machines from ZINSER are designed to be easily clamped in any position using a quick-release clamp. The manual drive, with two hand cranks and four drive wheels, is positioned so that the operator doesn’t need to change position during cutting. The torch can be adjusted ± 45° and is adjustable both in height and laterally. For models RSV-1 through RSV-4/14, a stepless motorized drive can also be used.
Products
Article number
Description
For pipe Ø
Gas type
Drive
Article number
370.231 5160-0001
Description
ZINSER Portable Flame Cutting Machine for pipe RSV-3
For pipe Ø
Ø 420 - 620 mm
Gas type
Acetylene
Drive
Manual
Article number
370.231 5160-0002
Description
ZINSER Portable Flame Cutting Machine for pipe RSV-3
For pipe Ø
Ø 420 - 620 mm
Gas type
Propane
Drive
Manual
Article number
370.231 5280-0001
Description
ZINSER Portable Flame Cutting Machine for pipe RSV-3
For pipe Ø
Ø 420 - 620 mm
Gas type
Acetylene
Drive
Motorized
Article number
370.231 5280-0002
Description
ZINSER Portable Flame Cutting Machine for pipe RSV-3
For pipe Ø
Ø 420 - 620 mm
Gas type
Propane
Drive
Motorized
Details
Pipe Ø minimum
70 mm
Pipe Ø maximum
6,000 mm
Manual operation range
Ø 270 – 1,400 mm
Motorized operation from
Ø 270 mm
Weld seams
X and Y
