LT-141 hand cutting torch
Need help with this product?
You can call or mail us.
We will gladly help you!
Details
Cutting current
Max. 150 A
Duty cycle 60%
150 A
Gas supply
Air
Gas supply pressure
4.4 – 5 Bar (70 Psi)
Ignition
High frequency
Products
Article number
Description
Cable
Article number 308.CUT100/LT141-6
Description LT-141 hand cutting torch for CUT100 (70º)
Cable 6 metres

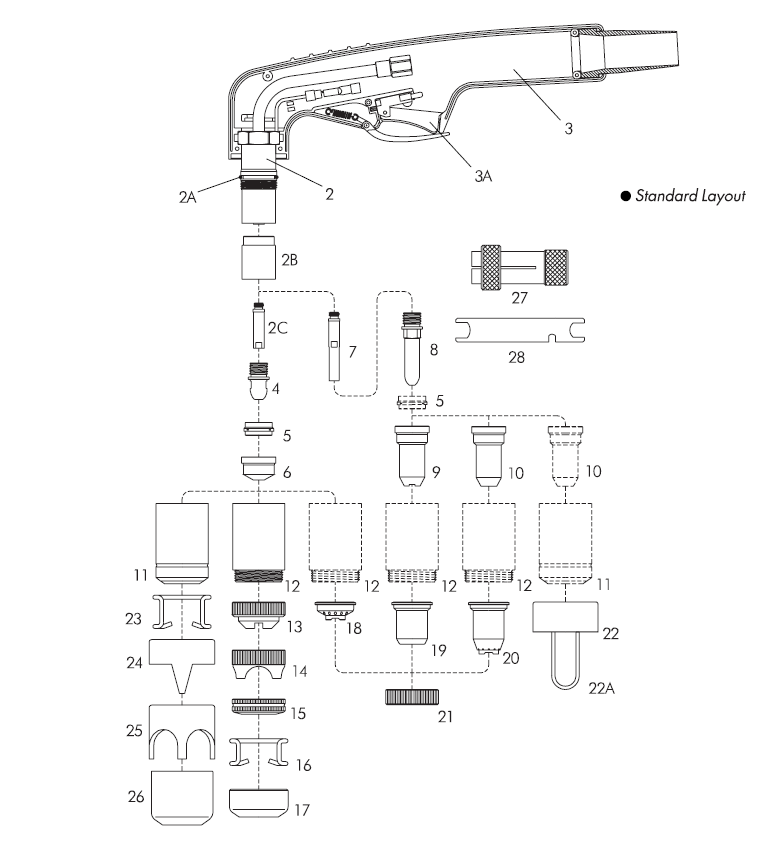

Parts
Article number
Description
Drawing number
Article number
375.6201
Description
Hand cutting torch
Drawing number
2
Article number
375.EA0131
Description
O-ring for cutting torch head
Drawing number
2A
Article number
375.60080
Description
front insulator
Drawing number
2B
Article number
375.05004
Description
Air distributor
Drawing number
2C
Article number
375.09706
Description
Handle with switch
Drawing number
3
Article number
375.07301.20
Description
Switch
Drawing number
3A
Article number
375.PR101
Description
Electrode
Drawing number
4
Article number
375.PE101
Description
Swirl Ring
Drawing number
5
Article number
375.PD101-11
Description
Cutting sleeve Ø 1.1 mm
Drawing number
6
Article number
375.PD101-14
Description
Cutting sleeve Ø 1.4 mm
Drawing number
Article number
375.PD101-17
Description
Cutting sleeve Ø 1.7 mm
Drawing number
Article number
375.PD101-19
Description
Cutting sleeve Ø 1.9 mm
Drawing number
Article number
375.PD101-30
Description
Gouging tip Ø 3.0 mm
Drawing number
Article number
375.05005
Description
Extended Diffuser
Drawing number
7
Article number
375.52538
Description
Electrode long
Drawing number
8
Article number
375.51159
Description
Cutting sleeve Long (50 A)
Drawing number
9
Article number
375.51159.14
Description
Cutting sleeve Long Ø 1.4 mm (for 51958 +51959 of 60380)
Drawing number
10
Article number
375.51159.17
Description
Cutting sleeve Long Ø 1.7 mm (for 51958 +51959 of 60380)
Drawing number
Article number
375.51159.19
Description
Cutting sleeve Long Ø 1.9 mm (for 51958 +51959 of 60380)
Drawing number
Article number
375.PC101/102
Description
Nozzle holder (long-life)
Drawing number
11
Article number
375.PC103/131
Description
Contact nozzle retaining cap
Drawing number
12
Article number
375.PC103/131
Description
Contact nozzle retaining cap, (Max. life)
Drawing number
Article number
375.CV23
Description
Spacer for contact cutting
Drawing number
13
Article number
375.CV39
Description
Long spacer for contact cutting
Drawing number
14
Article number
375.51952
Description
Spring holder protection nut
Drawing number
15
Article number
375.51911
Description
Distance spring for 51952
Drawing number
16
Article number
375.51953
Description
Gouging spacer
Drawing number
17
Article number
375.51950
Description
Spacer for contact cutting, hand
Drawing number
18
Article number
375.CV8
Description
Shield cup, hand (max. 50 A for use with 375.51959 only)
Drawing number
19
Article number
375.CV9
Description
Spacer for contact cutting, hand (for use with 375.51959 only)
Drawing number
20
Article number
375.51959
Description
Locking nut
Drawing number
21
Article number
375.60380
Description
Spacer complete with springs
Drawing number
22
Article number
375.60381
Description
Spare springs
Drawing number
22A
Article number
375.CV11
Description
Spacer spring
Drawing number
23
Article number
375.CV12
Description
Spacer 2-point
Drawing number
24
Article number
375.CV14
Description
Crown Spacer
Drawing number
25
Article number
375.CV13
Description
Gouging spacer
Drawing number
26
Article number
375.GR60
Description
Extractor for swirl ring
Drawing number
27
Article number
375.60368
Description
Key for electrode
Drawing number
28
